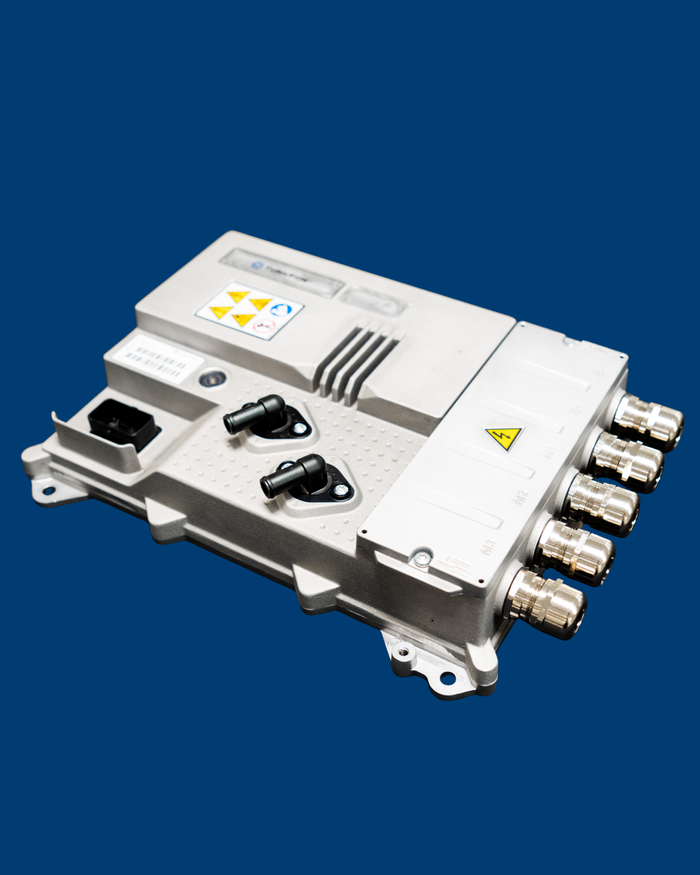

Turntide Gen 6, Size 9
)
The inverter is paired with many of Turntide’s high power density Axial Flux Motors, ideal for applications with a limited space envelope. Our products are used by some of the world’s leading automotive and industrial companies in several innovative and demanding applications. The same quality and reliability is designed into every Turntide product.
Features
•
Supports AC Permanent Magnet synchronous and AC Induction motors
•
Highly efficient advanced flux vector motor control
•
Operates at a nominal 350VDC voltage
•
Up to 540Arms maximum current output
•
Up to 200Arms continuous current output
•
12V or 24V logic supply
•
Compliant to ISO16750:2023
•
Compliant to Reg10 (R6)
•
Designed to comply with ISO26262:2018 ASILC and ISO13849:2023 Cat3 - PLd
•
Torque mirroring enabling coordinated control of multi node systems by ensuring each Gen6 Size9 delivers a matched torque command
